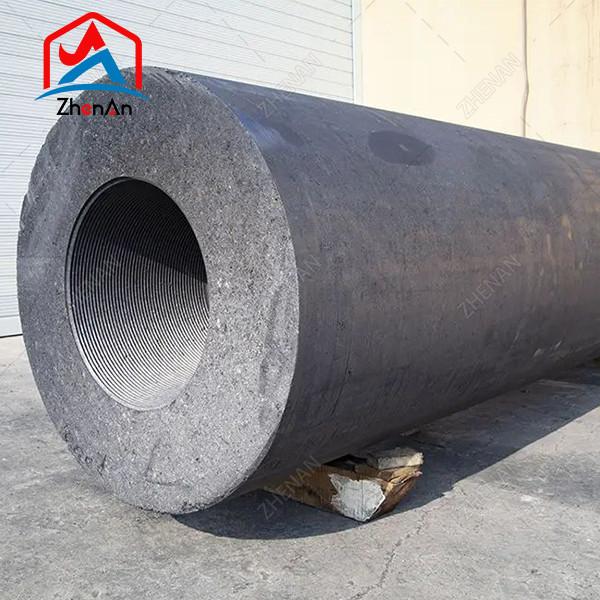

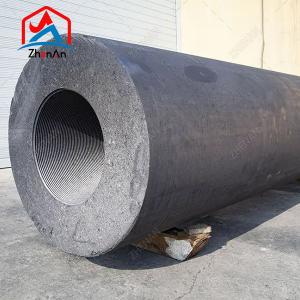

High Power High Quality HP 250mm RP Graphite Electrodes 205mm*1600mm
Manufacturing Method of High-Power Graphite Electrodes
High-power graphite electrodes are manufactured using a combination of petroleum coke and pitch. First, the petroleum coke is crushed and mixed with pitch as a binder. Then, the mixture is extruded into the desired shape and size and baked at high temperatures to remove any impurities. The baking process also converts the pitch into carbon, giving the electrode its electrical conductivity. The final step in the manufacturing process is graphitization, where the baked electrode is heated to temperatures exceeding 3000°C to convert the amorphous carbon into graphite.
Graphite Electrode Technical Specification
| Item | Unit | RP | HP | UHP |
| 250-400 | 450-800 | 300-400 | 450-700 | 300-400 | 450-700 |
| Electric Resistivity | Electrode | μΩ.m | 7.5-8.6 | 7.5-8.8 | 5.5-6.8 | 5.5-7.0 | 4.6-6.0 | 4.8-6.2 |
| Nipple | 4.5-5.5 | 4.0-5.0 | 3.5-4.5 |
| Bending Strength | Electrode | Mpa | ≥8.0 | ≥11.0 | ≥11.0 |
| Nipple | ≥15.0 | ≥16.0 | ≥18.0 |
| Elastic Modulus | Electrode | Gpa | ≤9.0 | ≤11.0 | ≤13.0 |
| Nipple | ≤13.0 | ≤14.0 | ≤15.0 |
| Bulk Density | Electrode | g/cm3 | 1.55-1.65 | 1.63-1.73 | 1.65-1.75 |
| Nipple | 1.70-1.75 | 1.73-1.80 | 1.75-1.82 |
| Ash | Electrode | % | ≤0.3 |
| Nipple |
| CTE(100-600)ºC | Electrode | 10-6/ºC | 2.00-2.50 | 1.80-2.00 | 1.30-1.50 |
| Nipple | | 1.50-1.80 | 1.50-1.80 | 1.20-1.40 |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZHENAN has been in the business of ferroalloy for 3 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
RFQ
Q: Are you a manufacture or trader?
A: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : What standards do you have?
A : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.The third party testing is all available for us.
Q : What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
