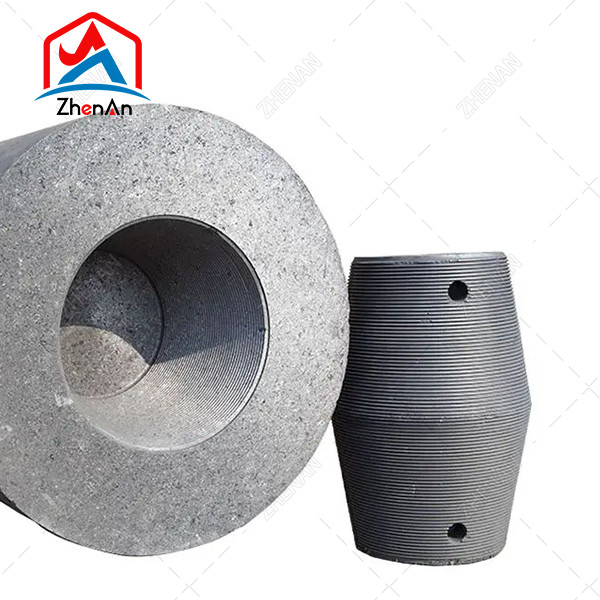

Ultra High Power Regular Power RP HP Shp UHP Grade 750mm 600mm 500mm 200mm 150mm Graphite Electrode With Nipples

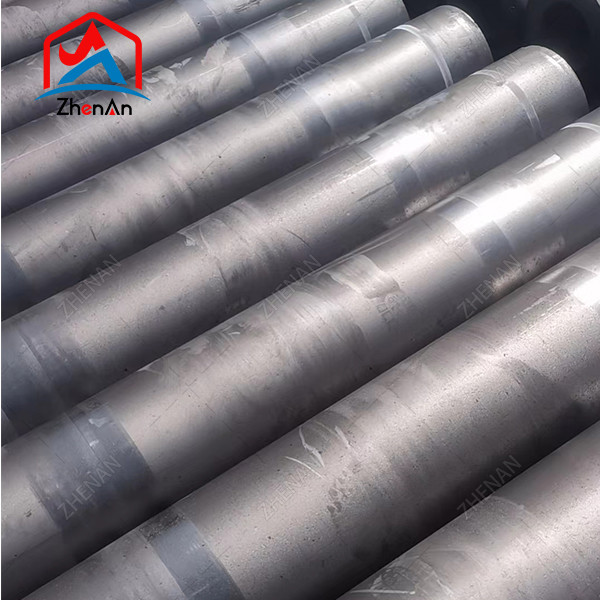

Graphite Electrodes
Graphite electrodes are a type of high-temperature graphite conductive material made from petroleum coke and pitch coke as aggregate materials, coal tar pitch as binder, through raw material calcination, crushing and grinding, batching, mixing, molding, baking, graphitization (carbonization), and machining. It is called artificial graphite electrode (abbreviated as graphite electrode) and is used as a conductor to convert electrical energy into heat energy to heat and smelt the arc furnace charge, which is called a graphite electrode arc furnace.
As an important carbon product, graphite electrodes play a role in conducting electricity and heat transfer in production and are consumables on smelting equipment such as electric arc steelmaking furnaces, ore-smelting furnaces, electric furnaces, and resistance furnaces.
Graphite electrodes have a wide range of applications, mainly in various smelting equipment such as electric arc steelmaking furnaces, ore-smelting furnaces, electric furnaces, and resistance furnaces. As a conductive material, graphite electrodes play a crucial role in the smelting process. In electric arc steelmaking furnaces, graphite electrodes generate high-temperature arcs through conduction of electricity, melting the furnace charge and achieving the purpose of steelmaking. In ore-smelting furnaces and electric furnaces, graphite electrodes are used to conduct current and generate heat energy to heat and melt the furnace charge. In addition, graphite electrodes are also widely used in chemical, metallurgical, machinery, electronics, and other industrial fields.
The Physical and Chemical Specification of RP Graphite Electrode
| Item | Unit | RP |
| φ75-φ800mm |
| Resistivity | Electrode | μΩm | 7.0-10.0 |
| Nipple | 4.0-4.5 |
| Modulus of Rupture | Electrode | Mpa | 8.0-10.0 |
| Nipple | 19.0-22.0 |
| Young's Modulus | Electrode | GPa | 7.0-9.3 |
| Nipple | 12.0-14.0 |
| Bulk Density | Electrode | g/cm3 | 1.53-1.56 |
| Nipple | 1.70-1.74 |
| CTE (100-600℃) | Electrode | 10-6/℃ | 2.2-2.6 |
| Nipple | 2.0-2.5 |
| Ash | % | 0.5 |
Packing & Delivery
REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.
Service: We can supply you with free samples, a booklet, a laboratory test report, an Industry Report, etc.
Welcome to our factory and company for a visit!
Company profile
ZHENAN has been in the business of ferroalloy for 3 years now. It is a leading manufacturer and supplier of ferro silicon,silicon manganese,silicon metal,silicon carbide,high carbon silicon and so on.our company is a large-sized production enterprise integrating research, development, production and sales.
Our company locates in Anyang city,Henan province of China a total area of about 15,000 square.With many years growing and developing,our company has domestic advanced smelting furnaces,crushing and screening production lines with annual output of 20000 tons.At the some time has two laboratories and a metallurgical materials testing center with dozens of senior researchers.The products are supplied to many large and medium-sized iron and steel enterprises in China, and exported to Japan, Korea, India, Europe and the United States.
RFQ
Q: Are you a manufacture or trader?
A: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q : What standards do you have?
A : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.The third party testing is all available for us.
Q : What is your lead time?
A : It usually needs about 15- 20 days after receiving the PO.
